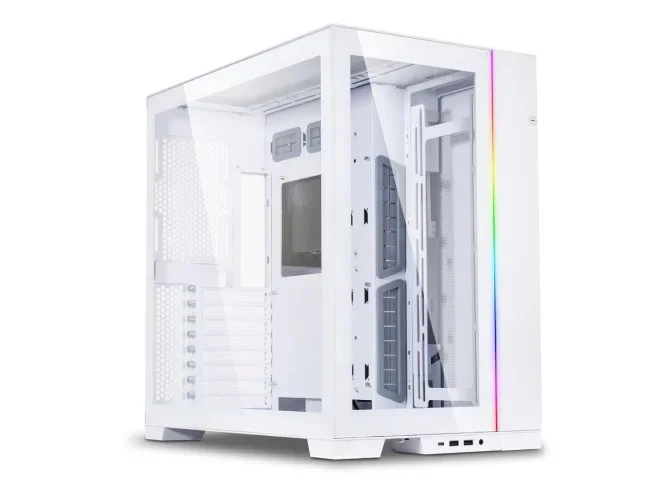

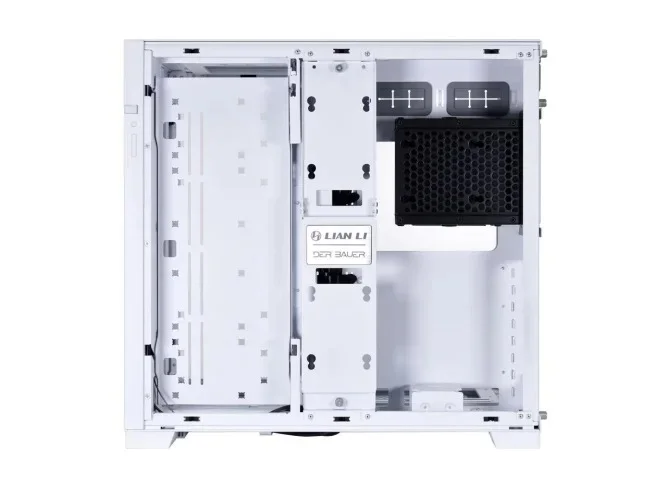

LIAN LI O11 Dynamic EVO White

Brand

LIAN LI

Series

O11 Dynamic EVO

Model

O11DEW

Details

Type

ATX Mid Tower

Color

White

Case Material

Aluminum / Steel / Tempered Glass

With Power Supply

No

Motherboard Compatibility

Micro ATX / ATX / ITX / E-ATX

Side Panel Window

Yes

LED

ARGB

Dust Filters

Bottom

Expansion

Internal 3.5" Drive Bays

Bottom: 3.5" HDD x 2 or 2.5" SSD x 4
Side: 3.5" HDD x 2 or 2.5" SSD x 4
Drive Cage: 3.5" HDD x 2 or 2.5" SSD x 3

Internal 2.5" Drive Bays

Drive Cage: 2.5" SSD x 1
Cable Management Bar: 2.5" SSD x 2

* Only 9 sets of 2.5" SSD mounting pads are provided.

Expansion Slots

8

Front Panel Ports

Front Ports

2 x USB 3.0 / 1 x USB 3.1 Type-C / Audio

Cooling System

Fan Options

Top: 3 x 120mm / 2 x 140mm fan

Side: 3 x 120mm / 2 x 140mm fan

Bottom: 3 x 120mm / 2 x 140mm fan

Rear: 1 x 120mm fan

On Drive Cage: 1 x 60mm fan

Radiator Options

Top: 280mm / 360mm (* Total max thickness: 87.5mm)

Side: 280mm / 360mm
* Inner scenario total max thickness:
83mm (120mm fan on top and bottom)
63mm (140mm fan on top and bottom)
* Outer scenario total max. thickness:
120mm (120mm fan on top and bottom)
100mm (140mm fan on top and bottom)


Bottom: 360mm (* Total max thickness: 87.5mm)

Dimensions & Weight

Max GPU Length

426 mm

Max CPU Cooler Height

167 mm

Max PSU Length

220 mm
